♦♦ Detailed Introduction

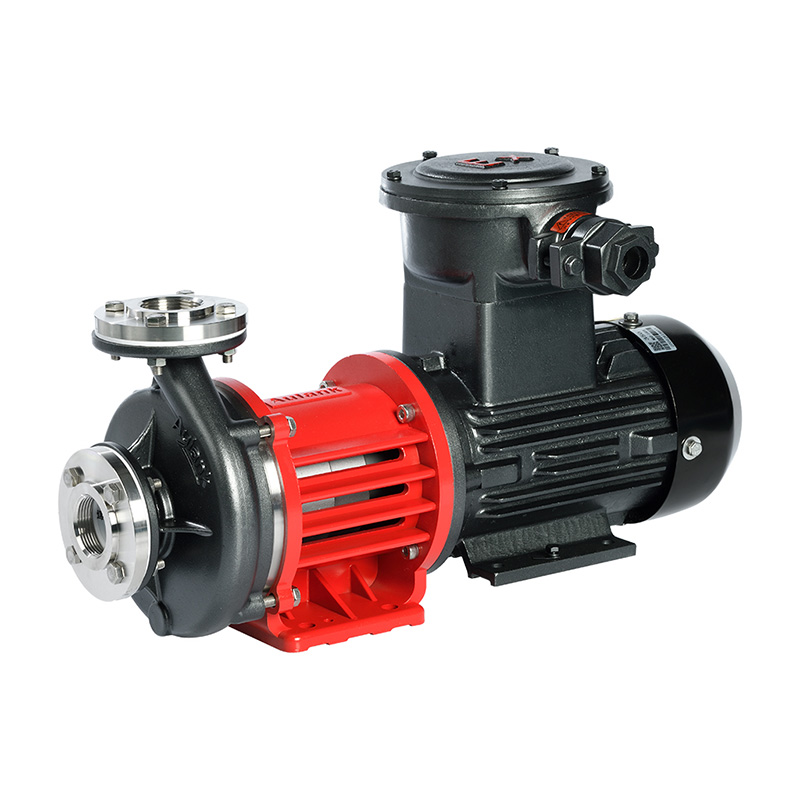

MDZ series of magnetic drive type high-low temperature centrifugal pump,

adopts advanced design principle and manufacturing technology,

The dynamic seal change to static seal though the Magnetic conduction between the isolation cover and magnet,

which make sure the stable performance under high-low temperature condition.

Application Area: High temperature mold temperature control ling,

High and low temperature test instrument, Chemical equipment,

Template temperature controlling, High end cleaning equipment, High temperature condensate recycle.

Circulation Medium: Water, ethylene glycol, alcohol, thermal oil, hydrocarbon solution,

silicone oil, refrigerant gasoline, and other liquids without particles and fibers.

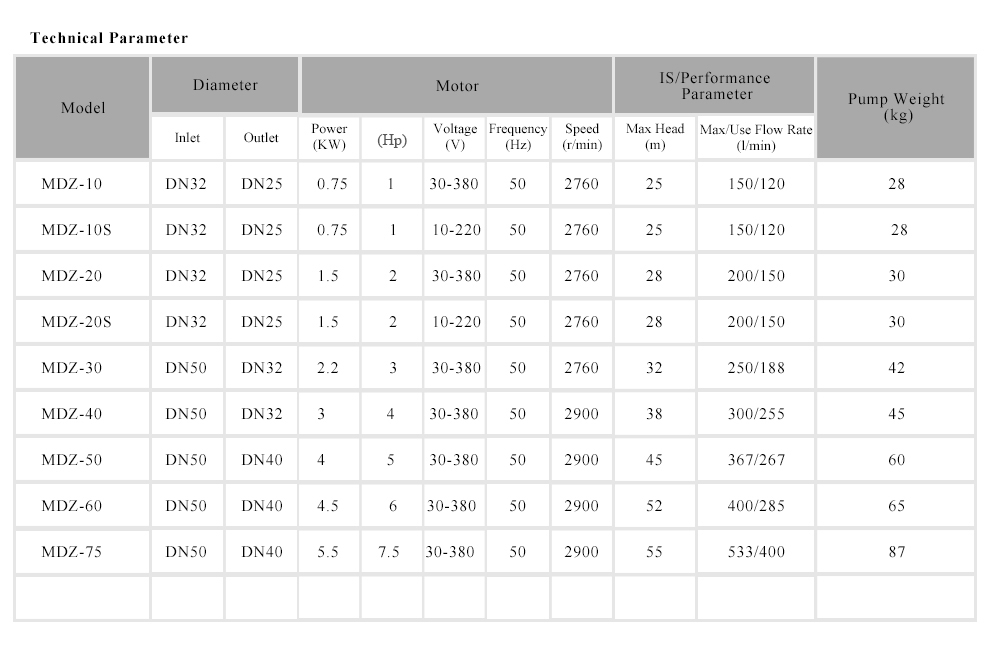

♦♦ Technical Parameter

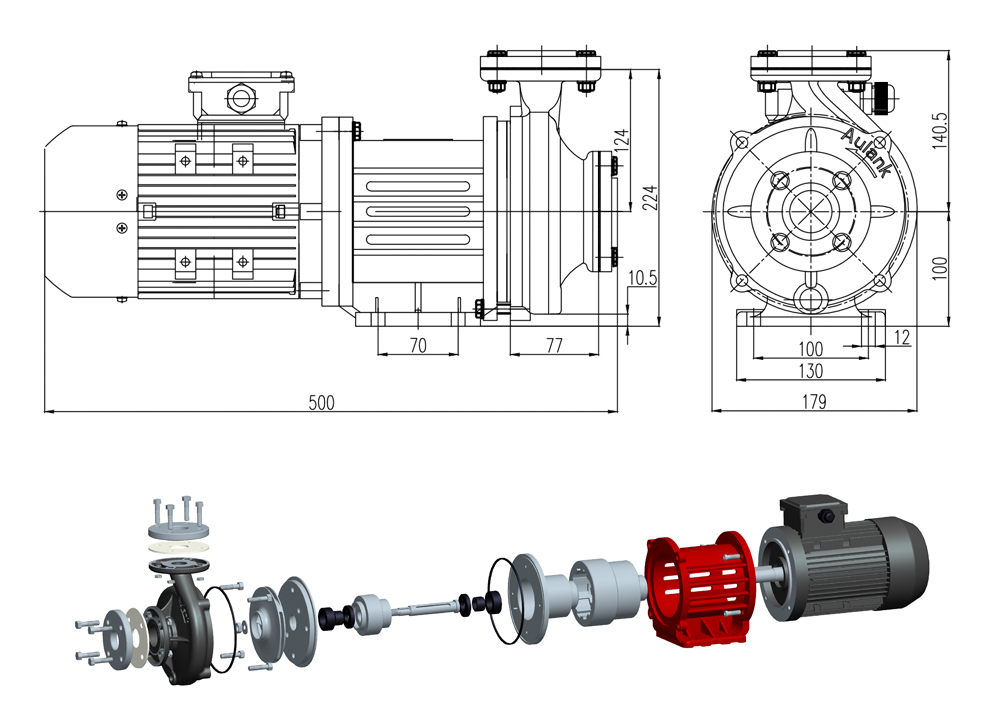

♦♦ Installing Drawing
