♦♦ Detailed Introduction

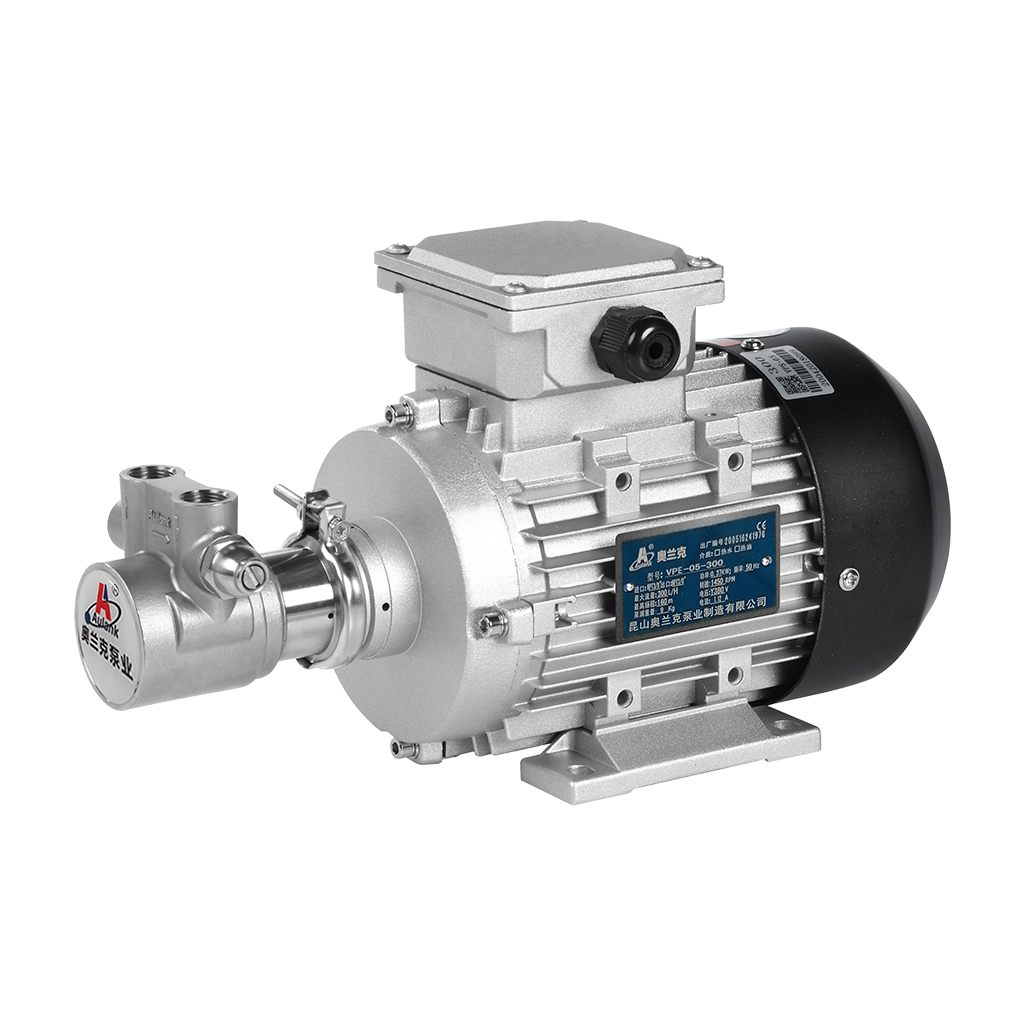

The Vane pump consists of a booster chamber, blades, rotor, pump body, and other components.

When the rotor rotates, the blades are subjected to centrifugal force,

and the tip is tightly attached to the inner surface of the stator.

The working volume formed by the two blades and the inner surfaces of the rotor and stator,

first absorbs water from small to large, and then discharges the medium from large to small.

When the blades rotate once, they complete one cycle of water absorption and drainage.

The material of the pump body is stainless steel or brass;The motor can be made of single phase, three phase, explosion proof or frequency conversion;

The advantages of the pump are self-priming, high pressure with small capacity,small volume, low noisy and fine appearance.

Application Area:

Fuel pumps for combustion engines, new energy combustion engines, and fuel pumps for combustion engines.

Beer cooling system, beer conveying system, coffee machine, small household appliances, beverage vending machine.

Landscape atomization system, atomization cooling system

Boiler high-pressure water replenishment, fire sprinkler atomization, high-pressure cleaning equipment.

Used for steam cleaning machines and high-pressure cleaning machines.

Laser equipment cooling, welding machine cooling, refrigeration system, TIG welding machine coolant equipment, plasma cutting machine cooling.

Reverse osmosis system, water treatment and purification equipment, ultrafiltration device, medium supply.

Plasma cutting machine, welding and cutting cooling system.

Car atomization pump, spray car use.

X-ray and medical laser cooling systems.

Beer mechanical cooling cycle.

Laboratory equipment cooling cycle.

Circulation Medium: Water, ethylene glycol, methanol, alcohol and other liquids without particles and fibers.

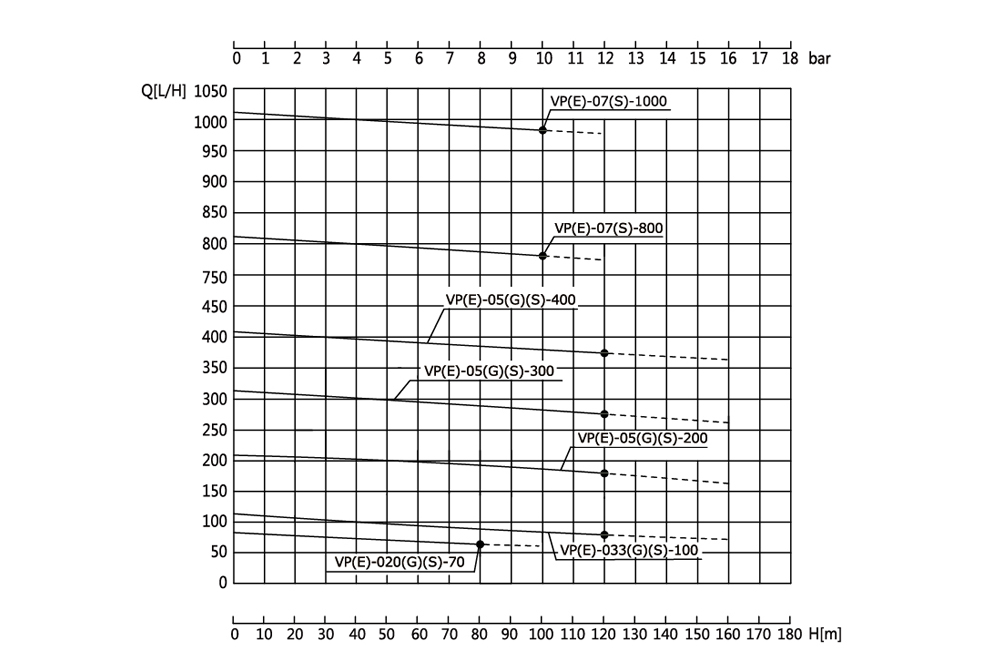

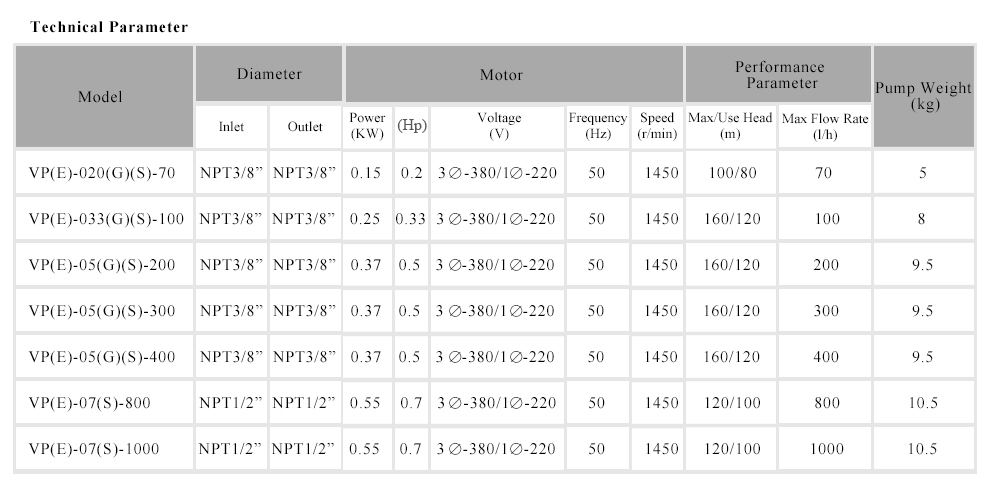

♦♦ Technical Parameter

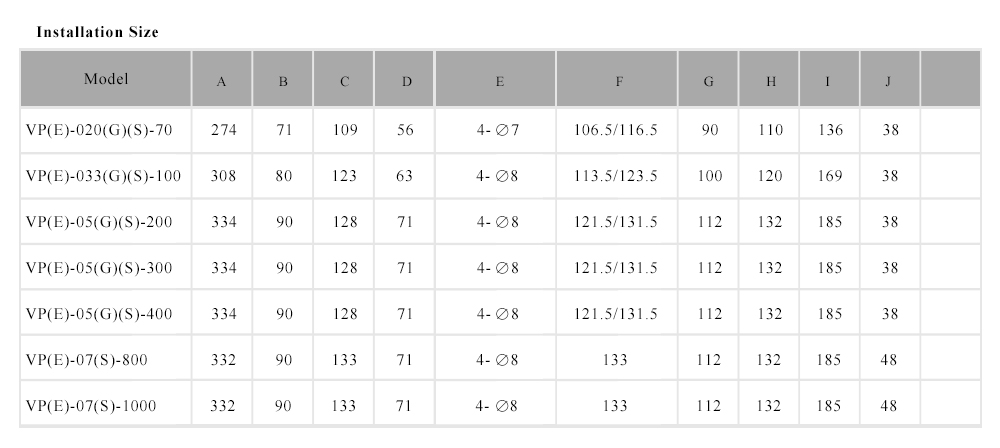

♦♦ Installing Drawing
