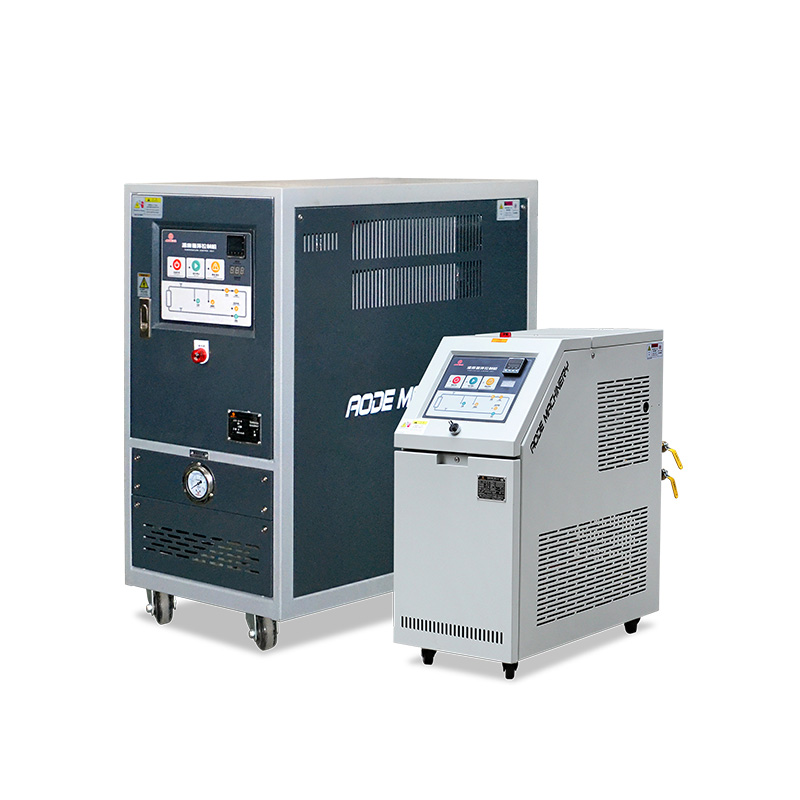

AODE AEWH-10 High Temperature Water Temperature Control Unit
AODE AEWH-10 High Temperature Water Temperature Control Unit Characteristic:
◆ Explosion proof device (optional)
◆ Air blowing and water return function (optional)
◆ Return water temperature display table
◆ Start up automatic exhaust function
◆ Heating power switching function
◆ Rs485 communication function to realize automatic management (optional)
◆ Hot water BY-PASS pressure relief circuit ◆ Multi point temperature control unit can be customized
◆ Pump horsepower and heating power can be customized
◆ SIEMENS. Weidmuller LG.MOELLER.ABB.WEST
◆ Temperature control range: inlet water temperature+45 ℃ - 150 ℃
◆ Stainless steel integrated pipeline, reducing pipe resistance and rust
◆ Control mode: imported microcomputer or (optional) PLC control
◆ Complete safety protection, fault display, repair and maintenance without professional personnel
| Item | Unit | Model AEWH-10 |
| Temp control range | Inlet water temperature +45-150 | |
| Temp control accuracy | PID+-1 | |
| Power supply | AC 3P380V/400V 50Hz(3phase+Earth) | |
| Heat transfer medium | Water | |
| Cooling method | Indirect cooling | |
| Heating capacity | Kw | 9 |
| Motor power | Kw | 0.75 |
| Pump flow | Lpm | 40 |
| Pump head | M | 60 |
| Max. power consumption | Kw | 9.75 |
| Alarm function | Pump reversal/Water shortage/Overheading/Overloading/high pressure | |
| Cooling water pipe | Inch | 1/2 |
| Circulating water pipe | Inch | 3/8*2 |
| Size (L x W x H) | Inch | 700*360*780 |
