♦♦ Detailed Introduction

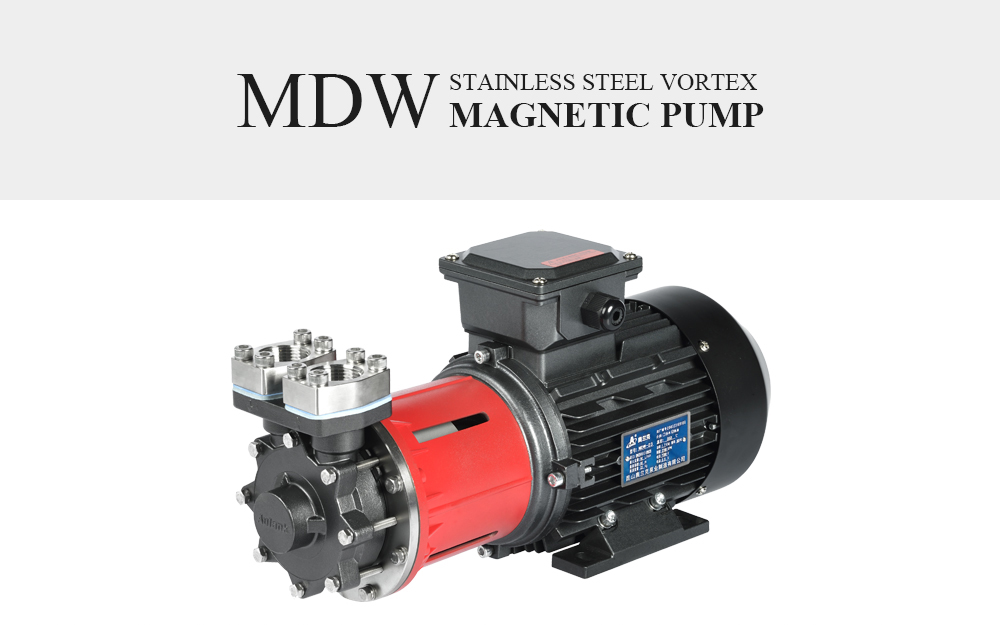

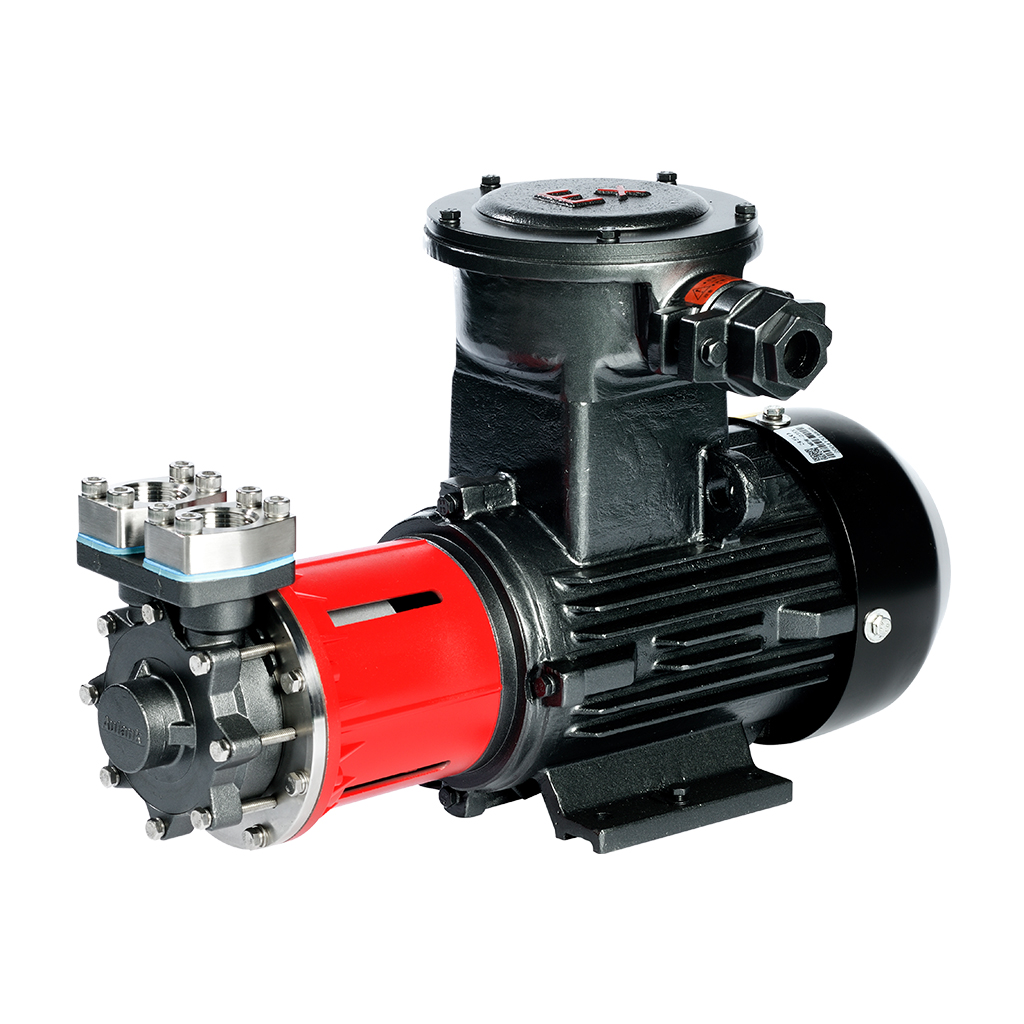

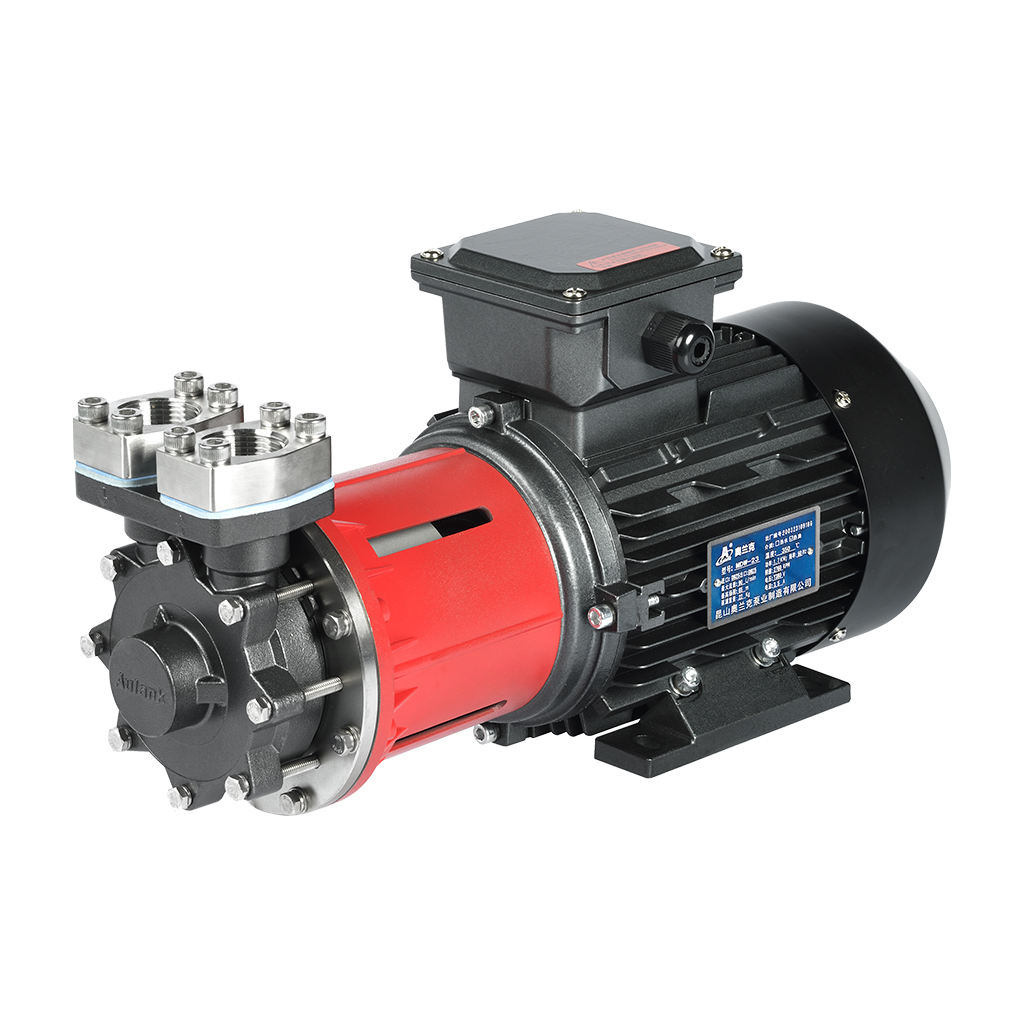

MDW series of magnetic drive type high-low temperature vortex pump, the material of overcurrent parts is stainless steel,

adopts advanced design principles and manufacturing technology.

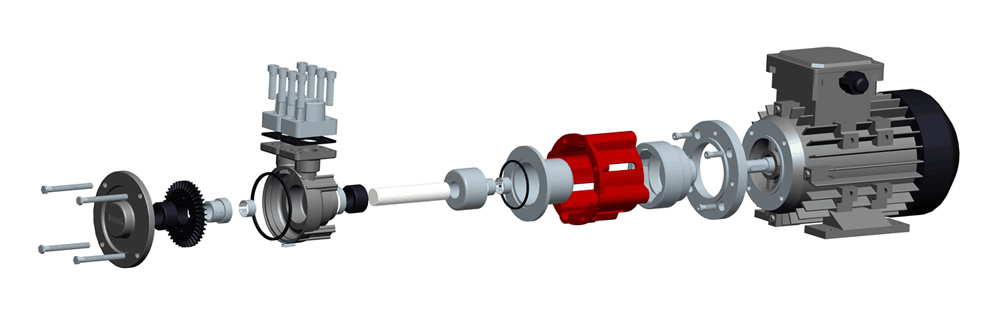

The dynamic seal change to a static seal through the Magnetic conduction between the isolation cover and magnet,

which make sure the stable performance under high-low temperature condition.

Application Area: High-temperature mold temperature controlling.

High and low-temperature test instrument, Semiconductor precision temperature control.

Chemical equipment, Template temperature controlling, Ultrasonic cleaning equipment.

Circulation Medium: Water, ethylene glycol, alcohol, thermal oil, hydrocarbon solution,

silicone oil, refrigerant gasoline, and other liquids without particles and fibers.

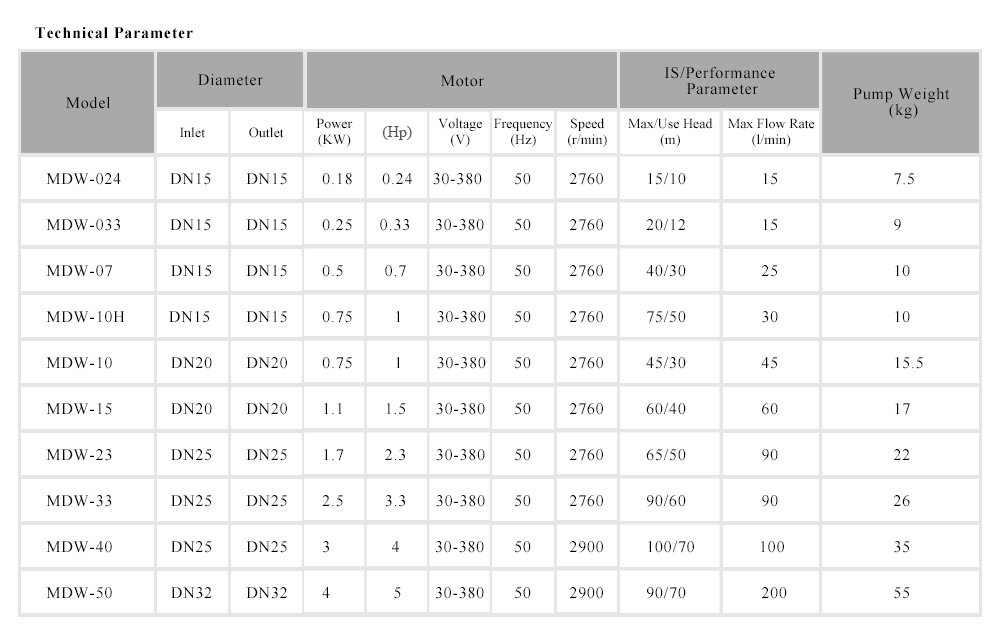

♦♦ Technical Parameter

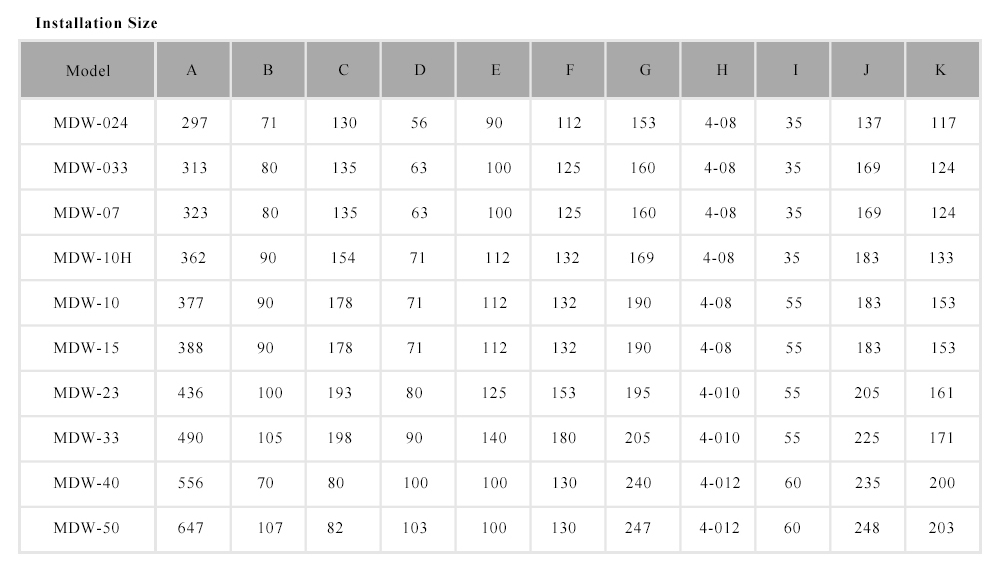

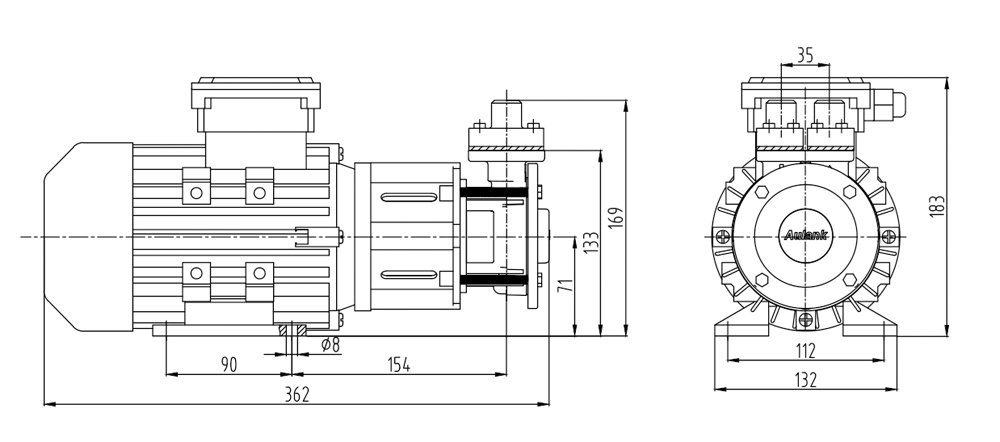

♦♦ Installing Drawing
