♦♦ Detailed Introduction

MDW magnetic pump is a magnetic driven ultra-high temperature vortex pump, which transports circulating media such as liquids without particles or fibers (water, thermal oil, ethylene glycol), etc. The pump has a beautiful appearance, low vibration, and low noise. It is suitable for circulating high-temperature thermal oil within 350 ℃ and hot water within 180 ℃.

Application Area: high temperature mold controlling,

                               high and low temperature test instrument,

                               semiconductor precision temperature control,

                               chemical equipment,

                               template temperature controlling,

                               ultrasonic cleaning equipment,

                               high end printing and dyeing equipment,

                               TCU.

Circulation Medium:

Water, ethylene glycol, alcohol, thermal oil, hydrocarbon solution,

silicone oil, refrigerant gasoline, and other liquids without particles and fibers.

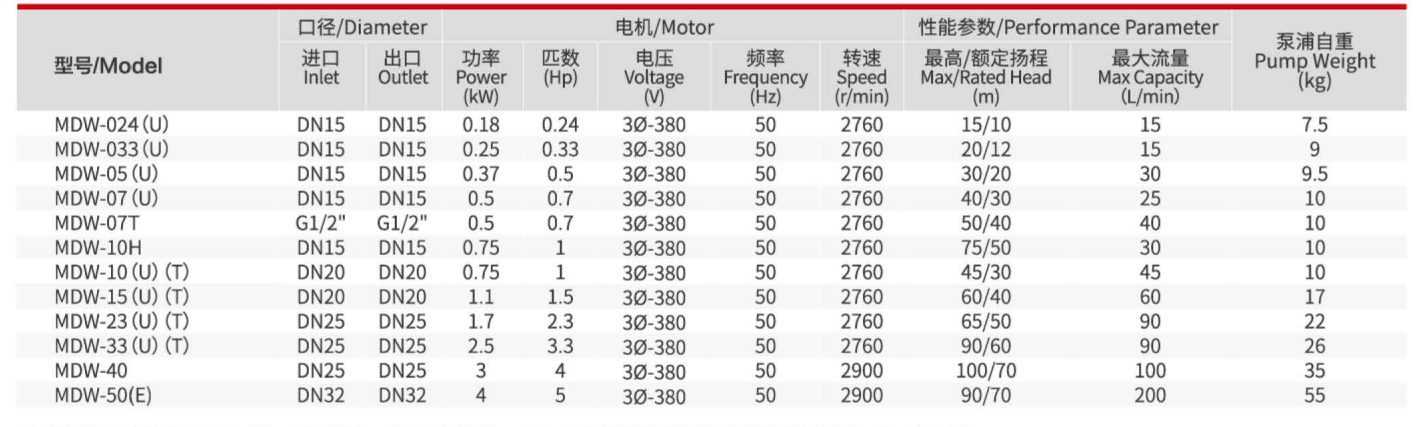

♦♦ Technical Parameter

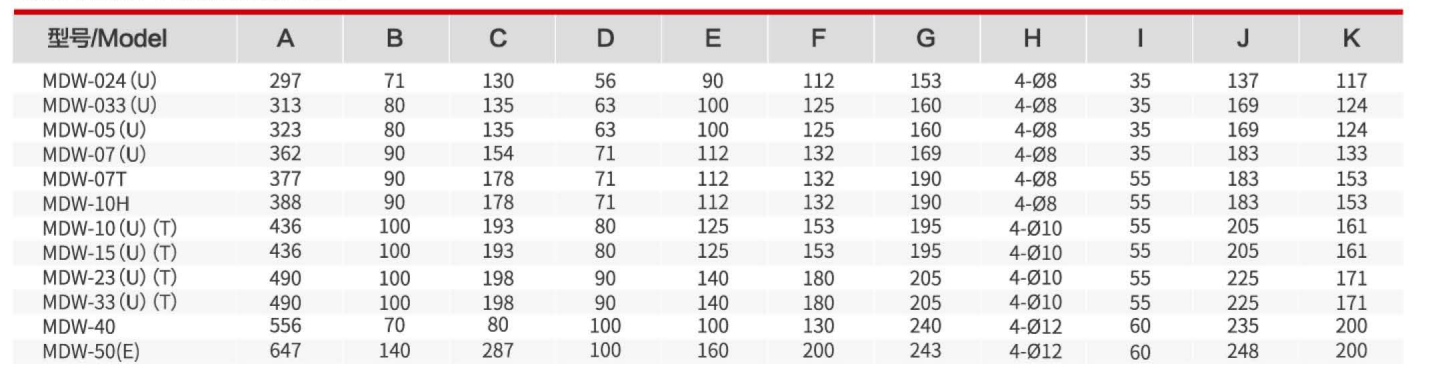

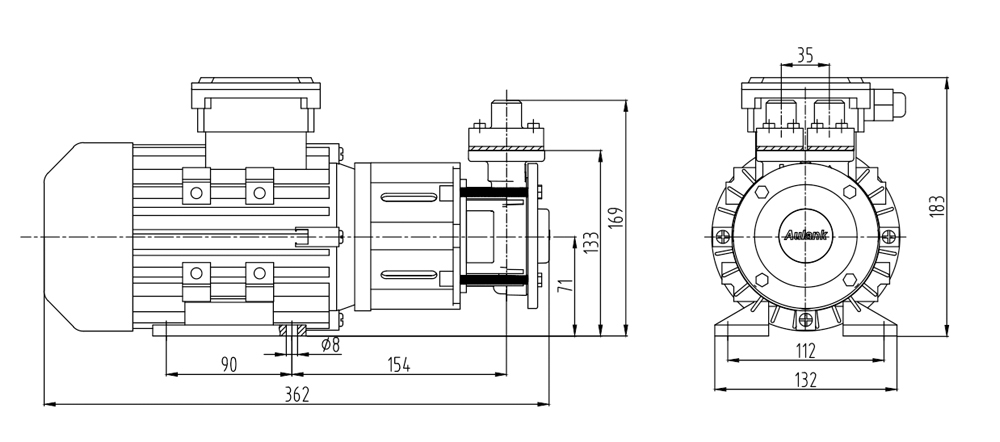

♦♦ Installing Drawing
