♦♦ Detailed Introduction

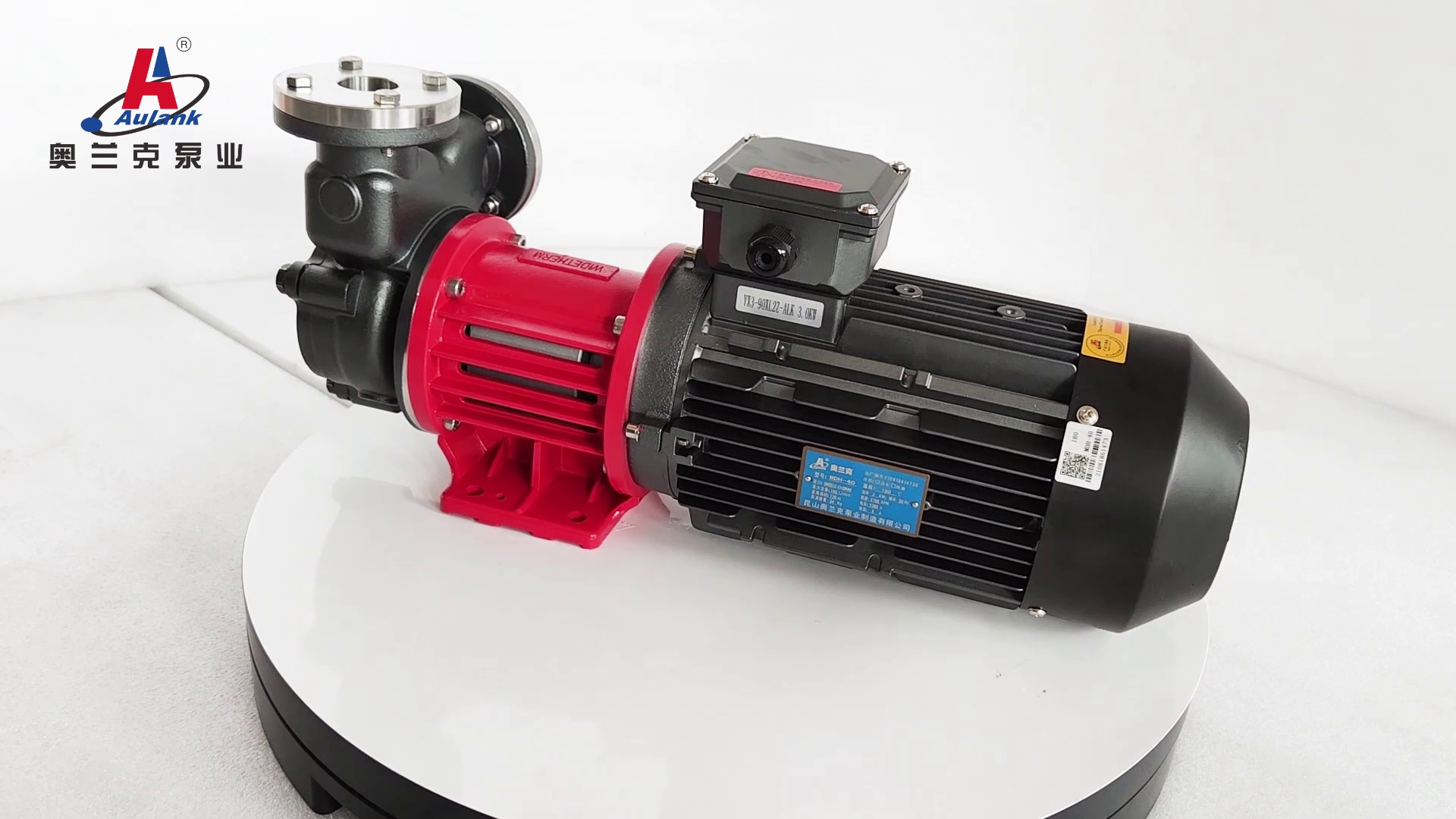

MDH stainless steel vortex magnetic pump,the material of the low-temperature magnetic drive overcurrent component is stainless steel, which has a certain gas-liquid mixing function. The product adopts a design without shaft seal and magnetic drive, which converts dynamic sealing into static sealing, achieving the safety and stability of the pump under deep cold and high temperature conditions.

Application Area: high temperature mold controlling,

                               high and low temperature test instrument,

                               semiconductor precision temperature control,

                               chemical equipment,

                               template temperature controlling,

                               ultrasonic cleaning equipment,

                               high end printing and dyeing equipment,

                               TCU.

Circulation Medium:

Water, ethylene glycol, alcohol, thermal oil, hydrocarbon solution,

silicone oil, refrigerant gasoline, and other liquids without particles and fibers.

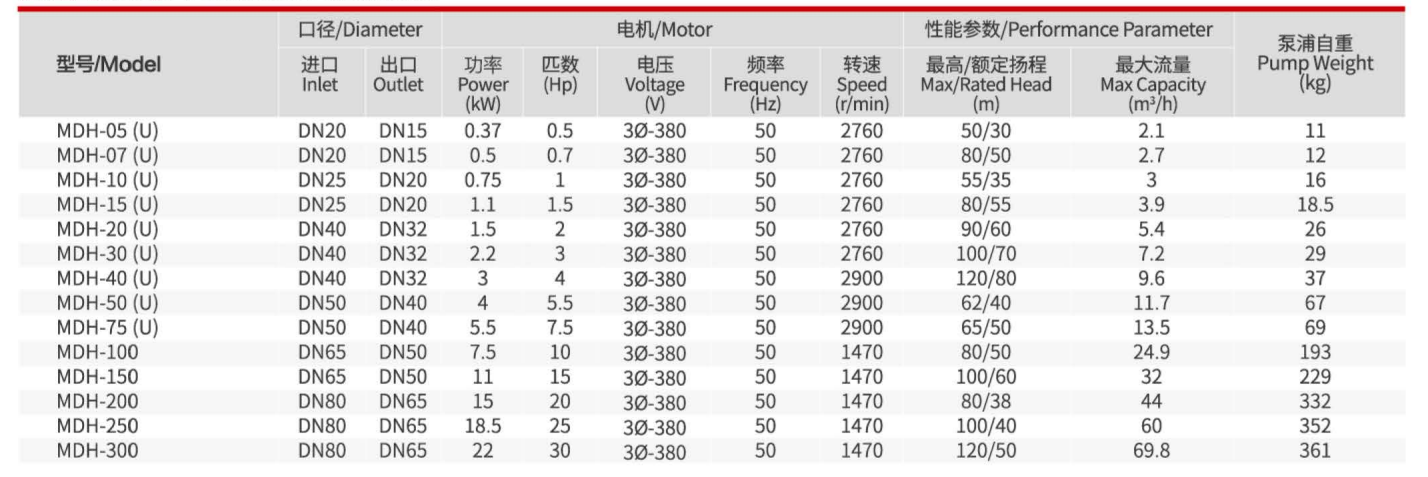

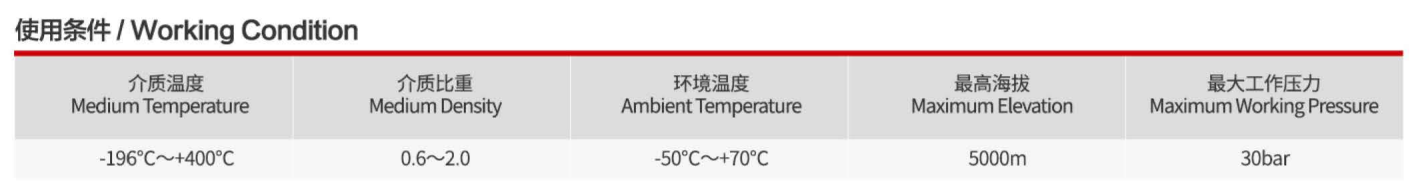

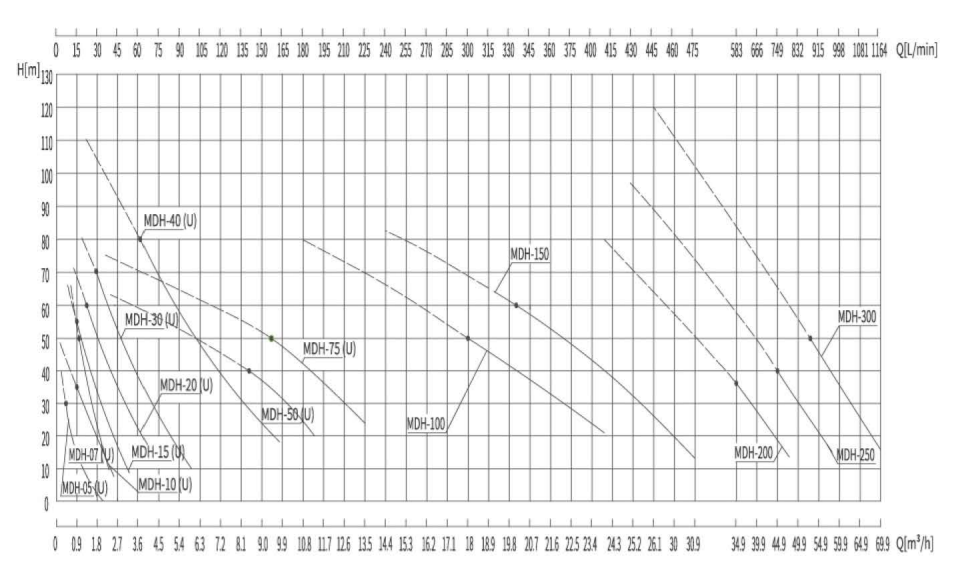

♦♦ Technical Parameter

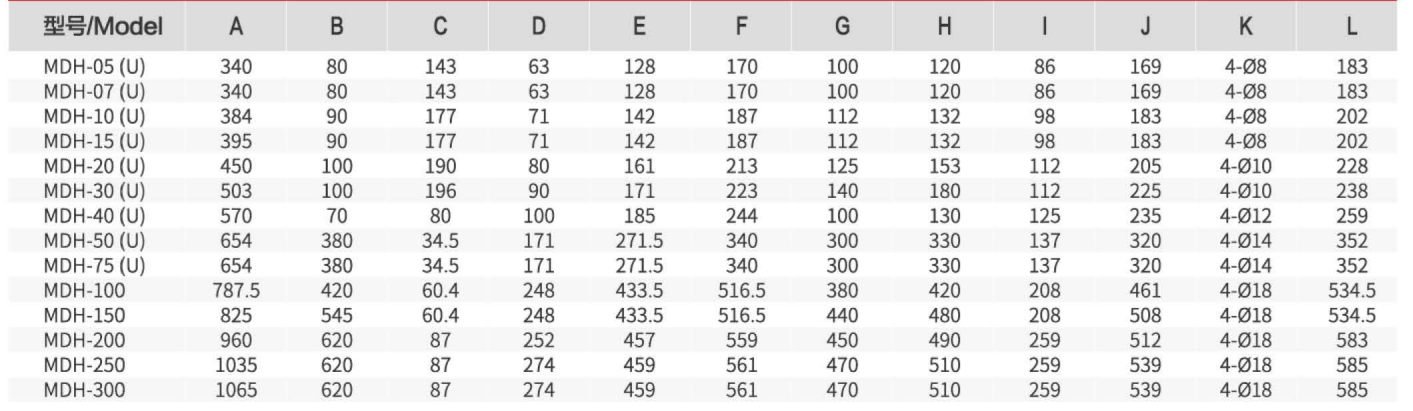

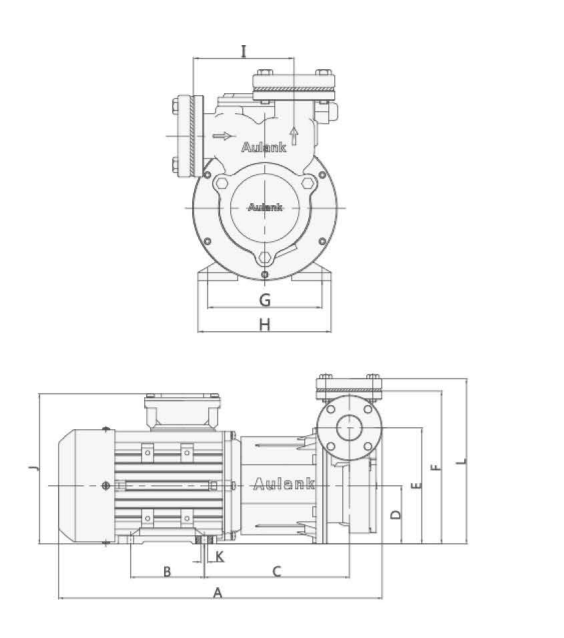

♦♦ Installing Drawing
