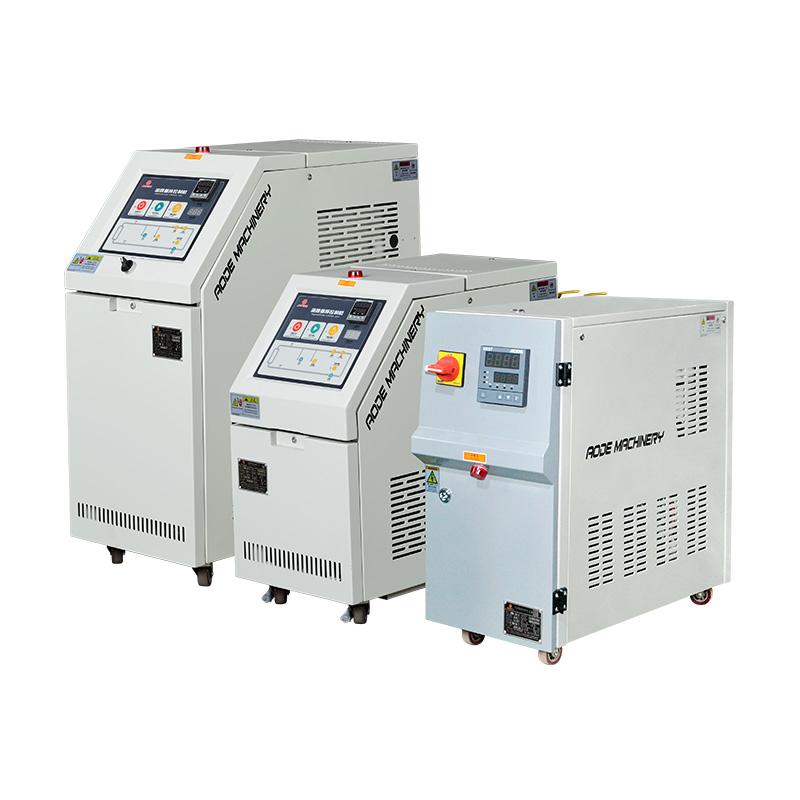

AODE AWM-10 Standard Water Temperature Control Unit

AODE water circulation mold temperature machine, water mold temperature machine is widely used in the following industries:
Petroleum and chemical industry: polymerization, condensation, distillation, melting, dehydration, forced insulation
Oil industry: fatty acid distillation, oil decomposition, concentration, esterification, vacuum deodorization
Synthetic fiber industry: polymerization, melting, spinning, extension, drying
Textile printing and dyeing work: heat setting, drying, heat capacity dyeing
Nonwovens industry: non-woven
Feed industry: drying
Plastics and rubber industry: hot pressing, calendaring, extrusion, vulcanization molding
Paper industry: drying, corrugated paper processing
Wood industry: plywood, fiberboard pressure forming, wood drying
Building materials work: gypsum board drying, asphalt heating, concrete component maintenance
Machinery industry: painting, printing and drying
Food industry: baking, heating
Air conditioning industry: industrial plant and civil building heating
Road building industry: asphalt melting, thermal insulation
Pharmaceutical industry: drying
Light industry: production of printing ink, washing powder



Item Unit Model AWM-10(A)
Temp control range ° iNLET WATER TEMPERATURE +25°-100°
Temp control accuracy ° PID+-1°
Power supply   AC3P 380V/400V50Hz(3phase+Earth)
Heat transfer medium   Water
Cooling method   Direct cooling
Heating capacity Kw 9
Motor power Kw 0.75
Pump flow Lpm 100/33
Pump head m 16/20
Max. power consumption Kw 9.75
Alarm function   Pump reversal/Water shortage/Overload
Cooling water pipe Inch 1/2
Circulating water pipe Inch 3/8*4
Size (L x W x H) mm 620*325*645
