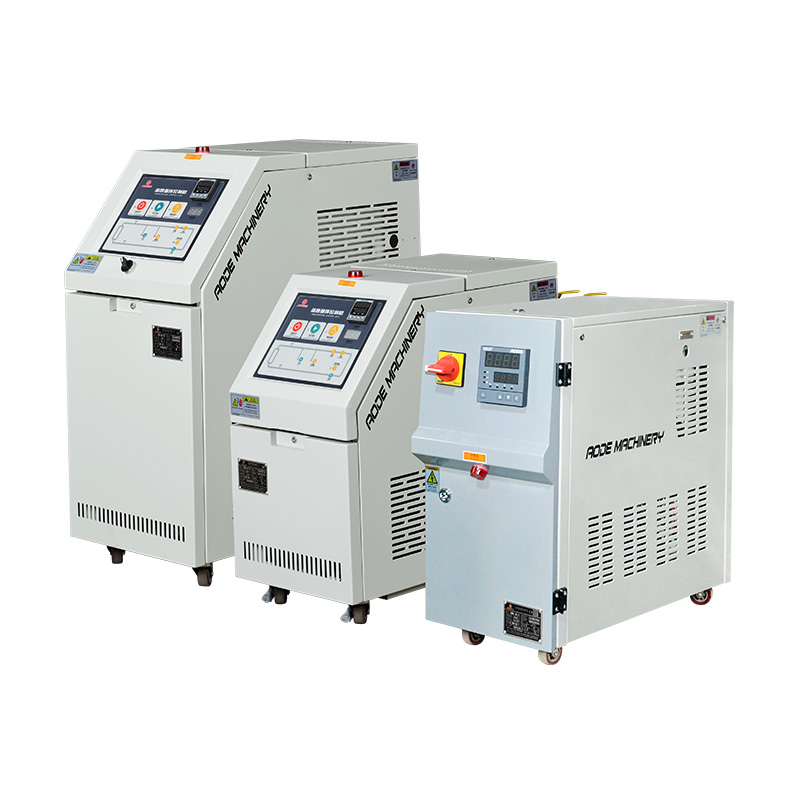

The oil temperature machine is suitable for auxiliary production of engineering plastic materials and plastic products. For example: beer products of nylon, PC and acrylic. The oil temperature machine is preset to reach the temperature required by the injection mold, forming products at one time, and reducing the raw materials for mold testing. Mold warming machine is an indispensable tool in the injection molding industry to accurately reduce waste and provide production and quality.
The oil temperature machine has the following functional features:
1. It is characterized by low pressure, high temperature, safety and effective energy saving.
2. The oil heater has reasonable structure, complete supporting facilities, short installation period, convenient operation and maintenance, and convenient boiler layout.
3. It has complete operation control and safety monitoring devices, which can precisely control the working temperature.
4. Due to the explosion-proof structure adopted by the electric heating oil temperature machine, it can be applied to the explosion-proof area II of the plant, and the explosion-proof grade can reach Grade C.
Item | Unit | Model AOS-10(A) |
Temp control range | Inlet water temperature +45°-180° | |
Temp control accuracy | PID+-1° | |
Power supply | AC3P 380/400V50Hz(3phase+Earth) | |
Heat trasfer medium | Thermal conductive oil | |
Cooling method | Indirect cooling | |
Heating capacity | Kw | 9 |
Motor power | Kw | 0.75 |
Pump flow | Lpm | 85/30 |
Pump head | m | 15/17 |
Max.power consumption | Kw | 9.75 |
Alarm function | Pump reversal/Oil shortage/Overlaod/Abnormal heating | |
Cooling water pipe | Inch | 1/2 |
Circulating oil pipe | Inch | 3/8*4 |
Size (L x W x H) | mm | 630*325*745 |
