♦♦ Detailed Introduction

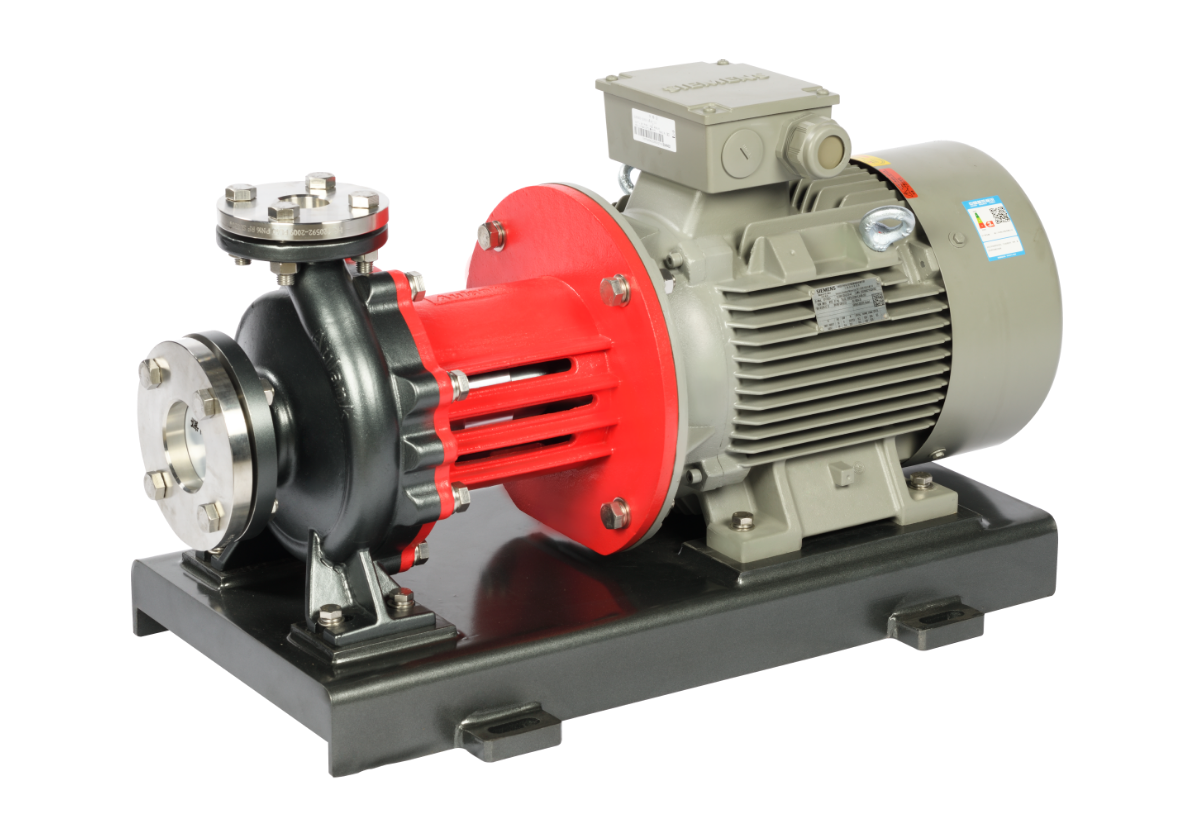

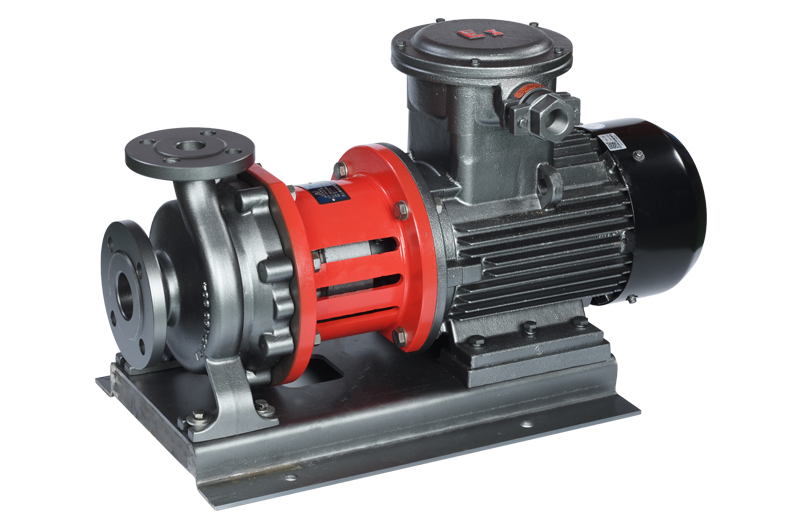

AMC series leakage free magnetic drive centrifugal pump is a new type of magnetic drive chemical process pump. The product design adopts the size parameters specified in the ISO2858 standard and the national standard GB5662, and adopts a high density combination pull push combination magnetic circuit with low magnetic consumption and high magnetic energy utilization. According to scientific principles and manufacturing processes, dynamic sealing is converted into static sealing through magnetic field conduction between external magnets, isolation sleeves, and internal magnets, ensuring the reliability and performance stability of the pump's sealing. This completely solves the problems of "running, emitting, dripping, and leaking", and can completely replace shielded electric pumps and most mechanical sealed pumps. It is the best choice for leak free places.

Application Area: petrochemicals,pharmaceutical intermdeiates,raw materials,medicine extractants,chemical additives,and environment protection and water treatment.

Circulation Medium: water,ethylene glycol,ethanol,synthetic oil,heat transfer oil,silicone oil,glacial refrigerant,acid,alkali,alcohol,benzene,phenol,grease and other chemical solutions that do not contain particles and fibers.

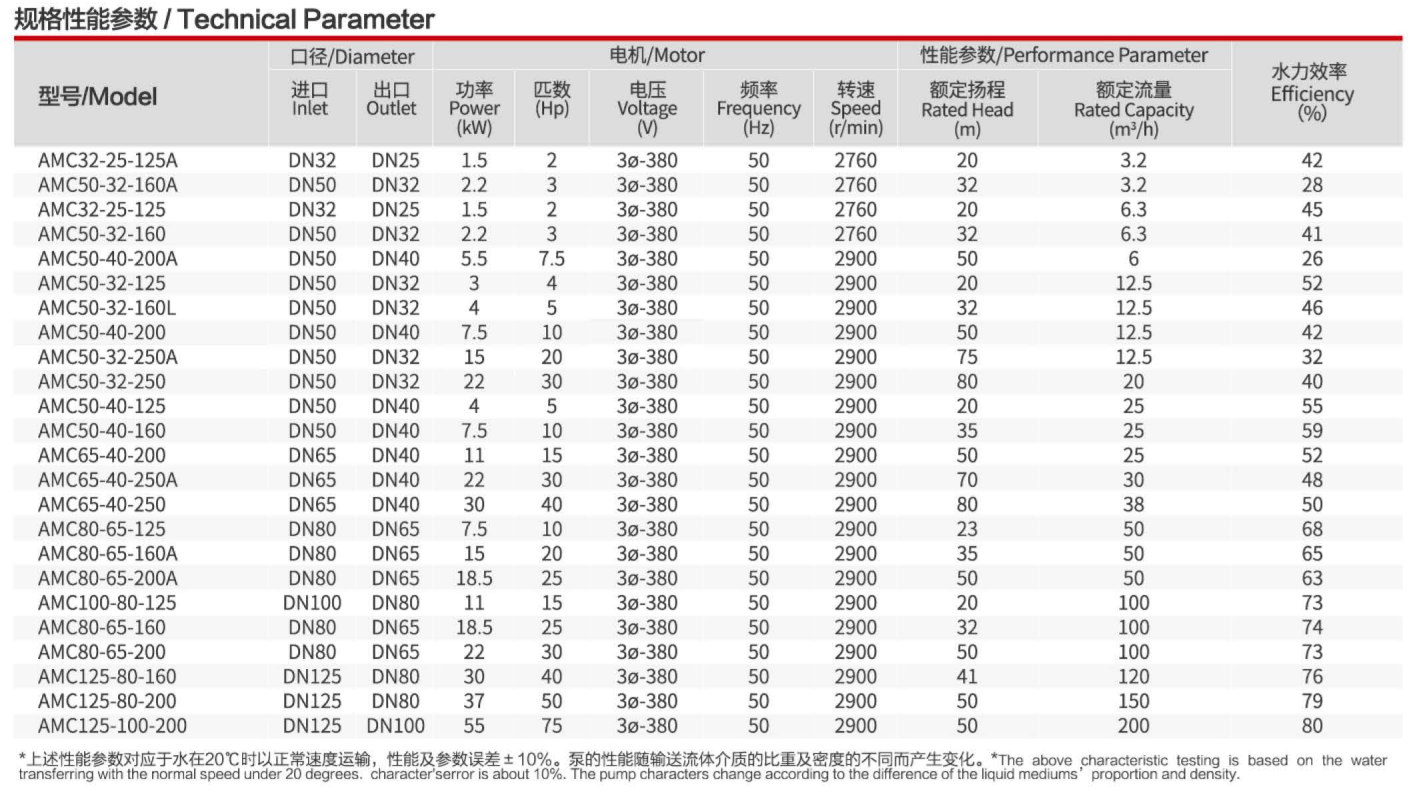

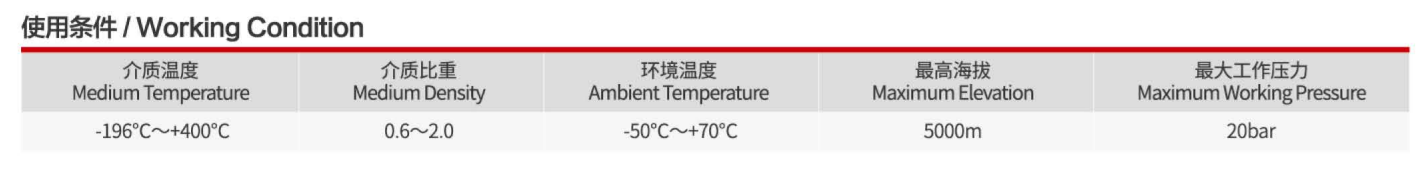

♦♦ Technical Parameter

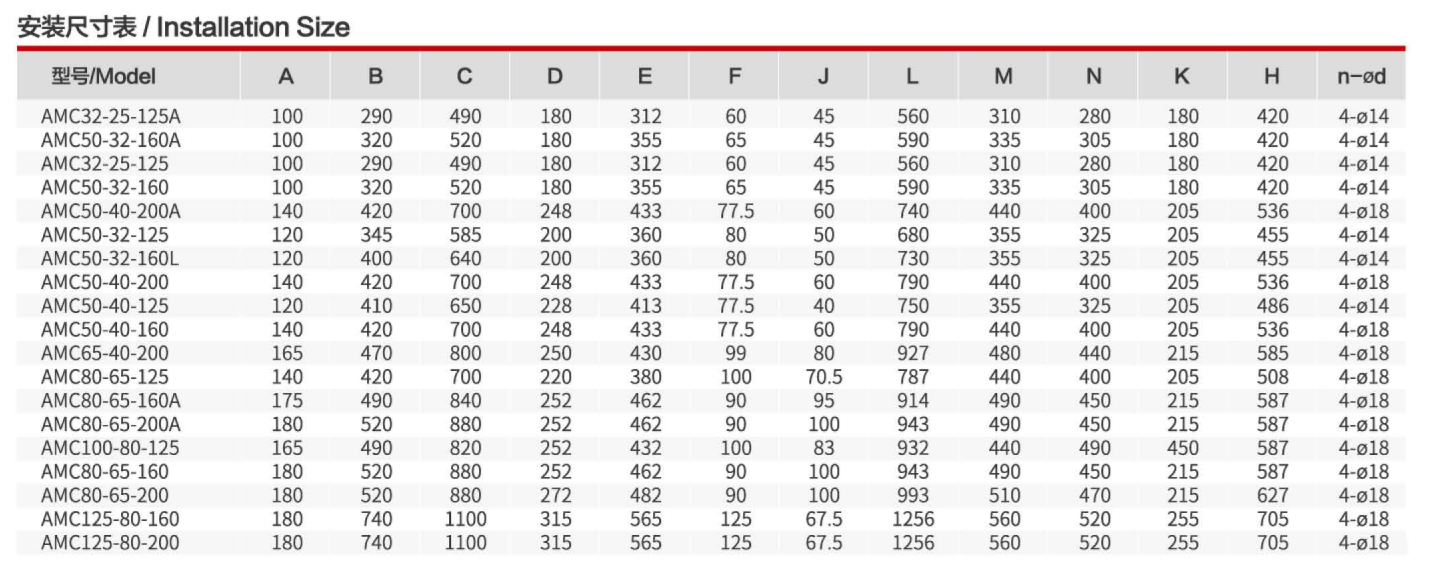

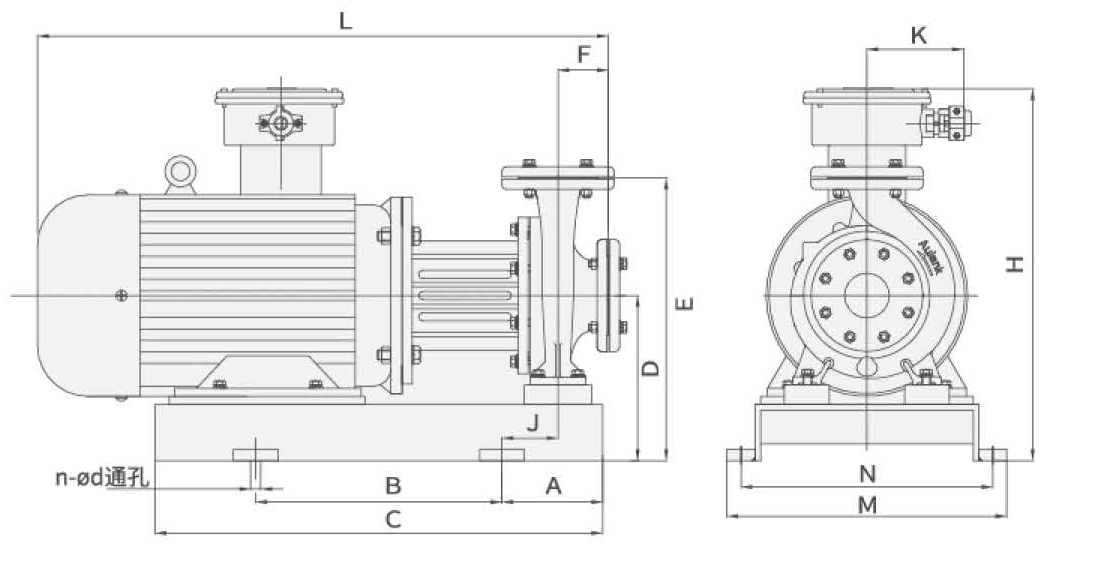

♦♦ Installing Drawing
